Network


The Modbus/TCP Conformance Test Laboratory has a testbed network used for interoperability testing and development. The following is the relevant information about the network.

NEW Companies who have donated devices to our network

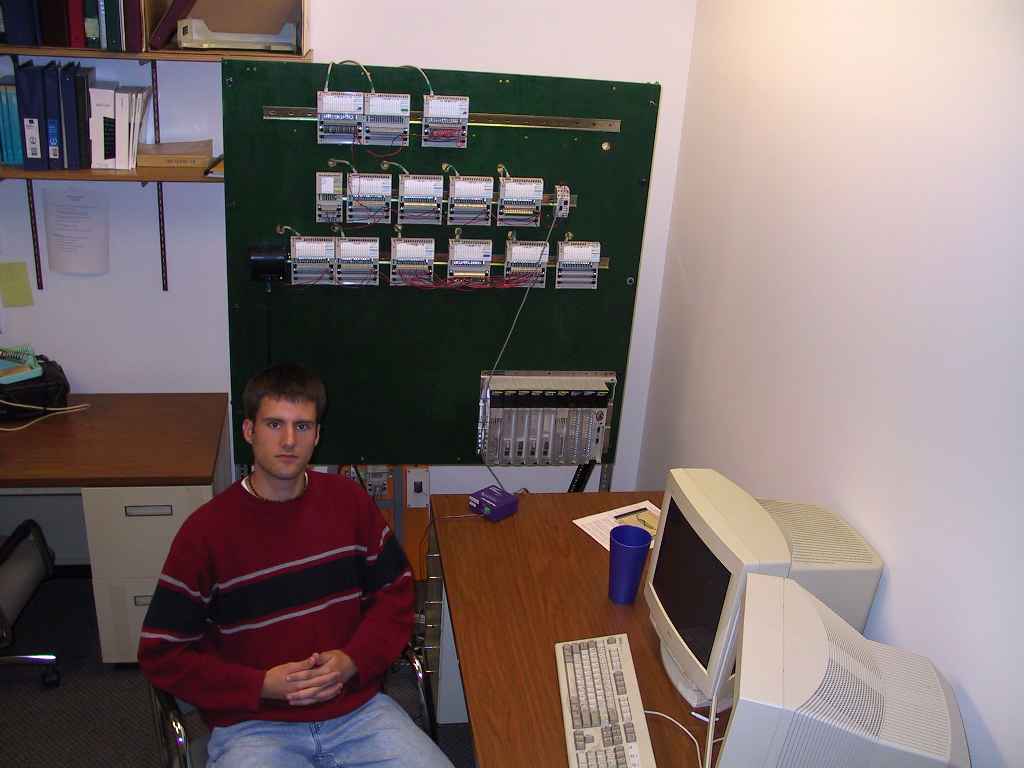

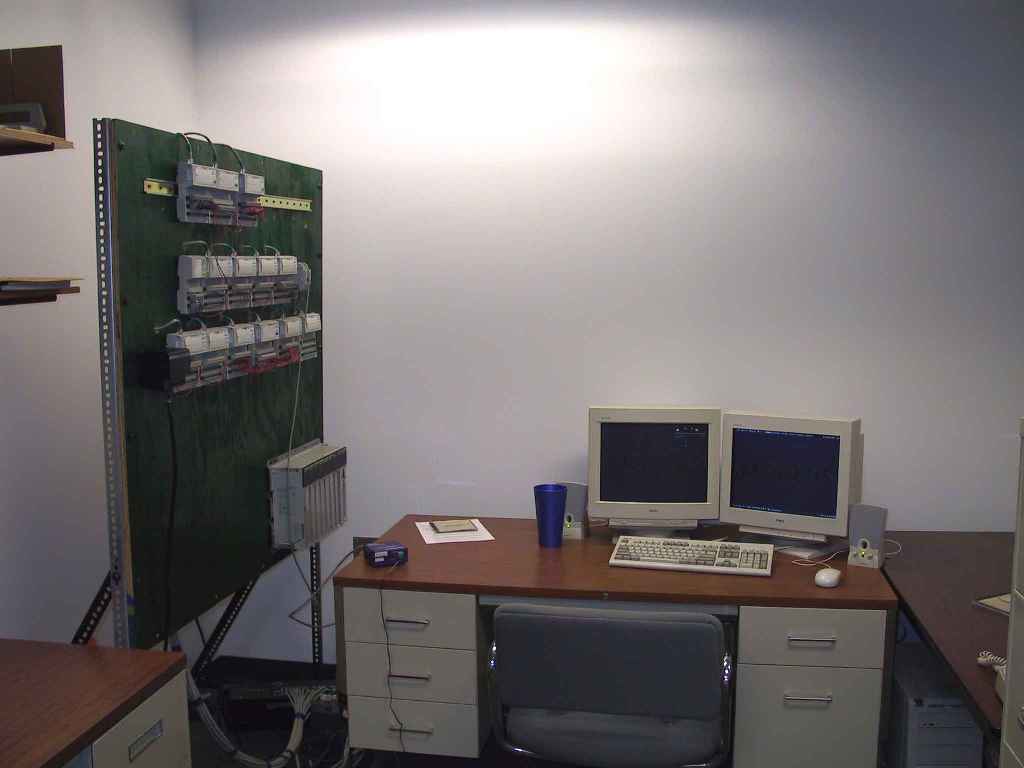

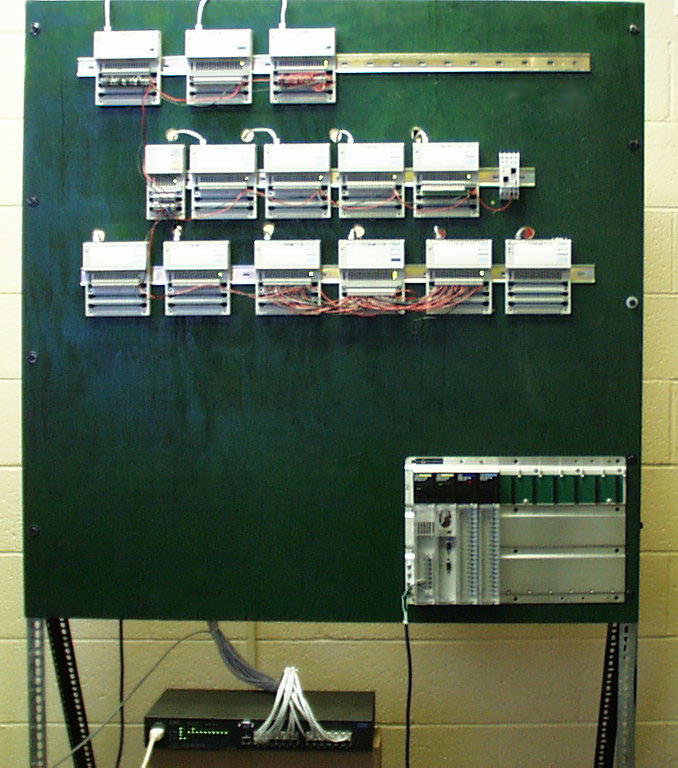

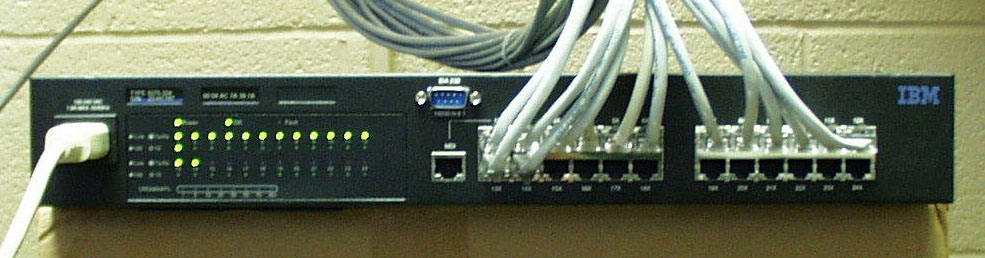

Images of the network and board:

The network is wired with shielded CAT5 twisted-pair Ethernet cable. A 100 meter cable runs from the Lab PC to the board for tests.

Network Devices:
Manufacturer IP Address Device Device Description
3Com 192.168.1.1 Fast Etherlink NIC (3C905B-TX) PC
Schneider Electric 192.168.1.2 TSX Momentum 170 CCC 980 20 on 170 ADI 340 00 Processor Adapter, 512K
Schneider Electric 192.168.1.3 TSX Momentum 170 ENT 110 00 on 170 ADI 340 00 16 port Digital I/O IN
Schneider Electric 192.168.1.4 TSX Momentum 170 ENT 110 00 on 170 ADO 340 00 16 port Digital I/O OUT
Schneider Electric 192.168.1.5 TSX Momentum 170 ENT 110 00 on 170 ADI 340 00 16 port Digital I/O IN
Schneider Electric 192.168.1.6 TSX Momentum 170 ENT 110 00 on 170 ADI 340 00 16 port Digital I/O IN
Schneider Electric 192.168.1.7 TSX Momentum 170 ENT 110 00 on 170 ADI 340 00 16 port Digital I/O IN
Schneider Electric 192.168.1.8 TSX Momentum 170 ENT 110 00 on 170 ADI 340 00 16 port Digital I/O IN
Schneider Electric 192.168.1.9 TSX Momentum 170 ENT 110 00 on 170 ADI 340 00 16 port Digital I/O IN
Schneider Electric 192.168.1.10 TSX Momentum 170 ENT 110 00 on 170 ADI 340 00 16 port Digital I/O IN
Schneider Electric 192.168.1.11 TSX Momentum 170  ENT 110 00 on 170 ADI 340 00 16 port Digital I/O IN
Schneider Electric 192.168.1.12 TSX Momentum 170 ENT 110 00 on 170 ADM 350 11 16 port Digital I/O IN/OUT
Schneider Electric 192.168.1.13 TSX Momentum 170 ENT 110 00 on 170 AAO 120 00 4 Channel Analog Output Module
Schneider Electric 192.168.1.14 TSX Momentum 170 ENT 110 00 on 170 ADM 350 10 16 port Digital I/O IN/OUT

PLC:
Manufacturer Module Module Description
Schneider Electric TSX Quantum 140 CPU 113 02 Controller CPU, 256 K, w/ MB+
Schneider Electric TSX Quantum 140 CPS 111 00 AC Power Supply 115/230VAC 5.1VDC 3A
Schneider Electric TSX Quantum 140 CPS 114 10 AC Power Supply 115/230VAC 5.1VDC 8A
Schneider Electric TSX Quantum 140 DDO 353 00 Discrete DC OUT Module
Schneider Electric TSX Quantum 140 DDI 353 00 Discrete DC OUT Module
Schneider Electric TSX Quantum 140 XBP 010 00 10 slot backplate
Schneider Electric TSX Quantum 140 NOE 771 10 FactoryCast Module
Schneider Electric TSX Quantum 140 NOE 771 00 HTTP Interface Module

Other Equipment:
Manufacturer Device Device Description
Schneider Electric Networking 174 CEV 300 10 Modbus Ethernet Bridge
Schneider Electric TSX Momentum 170 BSM 016 00 Input Simulator
Schneider Electric TSX Momentum 170 CPS 111 00 AC Power Supply 115/230 0.7A

Updated: Thursday, 26-Aug-2004 17:51:29 EDT
